Unified Messaging with OmniQueue: A Comprehensive Guide to Broker-Agnostic Messaging Systems and Practical Implementations

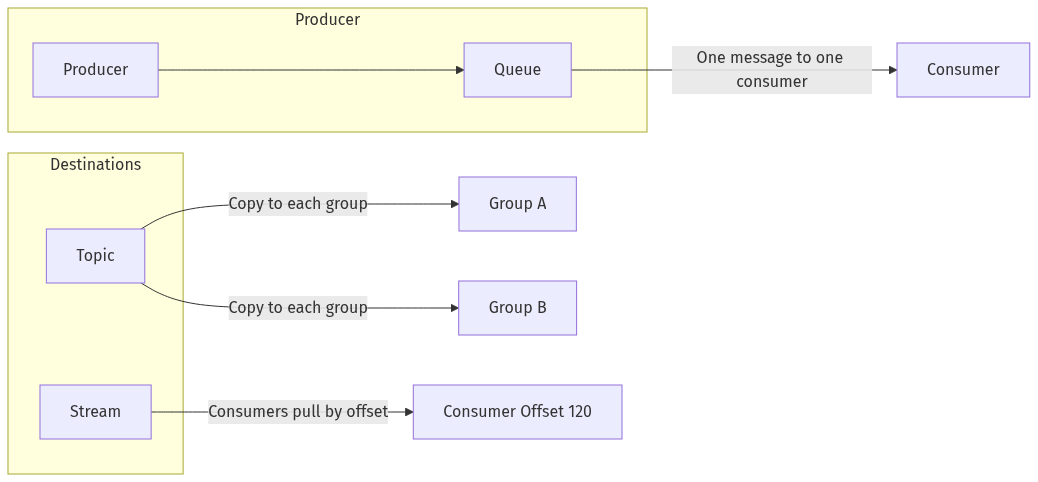

FIFO order by default, though some brokers allow priority or sharded ordering.

Work sharing — multiple consumers in the same group share the load.

Backpressure — unacknowledged messages accumulate in the queue.

Task processing (image rendering, report generation).

Decoupling request spikes from downstream processing.

Buffering workloads when downstream systems are slow.

Fanout delivery — every consumer group subscribed to a topic gets a full copy of the message stream.

Group semantics — within a single group, messages are load-balanced to one consumer at a time.

Loose coupling — producers don’t need to know who consumes their messages.

Event broadcasting (order events, user activity streams).

Multi-service pipelines (analytics, fraud detection, notifications).

Event sourcing feeds.

Messages persist for a retention period (e.g., 7 days) or indefinitely.

Multiple independent consumers — each with their own offsets.

High throughput by avoiding message deletion.

Audit logging with replay.

Rebuilding projections in CQRS systems.

Time-series analytics pipelines.

Accepts messages from producers via network protocols (AMQP, Kafka protocol, MQTT, HTTP).

Routes them based on metadata (exchange bindings, partition keys, headers).

Stores them (in memory, disk, or distributed logs) for durability and later delivery.

Delivers them to consumers, tracking acknowledgements.

Durability — messages survive restarts or crashes.

Routing flexibility — fanout, topic filters, header matching, partitioning.

Operational visibility — metrics, queues, consumer lag.

Security controls — authentication, authorization, encryption.

Operational cost — needs monitoring, scaling, patching.

Latency vs. durability trade-offs — fsyncs, replication.

Complexity — tuning partitions, queues, consumers.

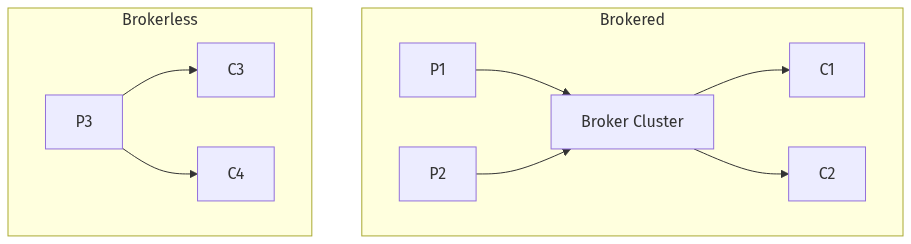

Ultra-low latency — no queue persistence or broker hop.

No single point of failure — as long as consumers are reachable.

Lightweight deployment — often just a library in your app.

No inherent durability — offline consumers miss messages.

No centralized management — must handle discovery, retries, ordering yourself.

Difficult scaling for complex topologies.

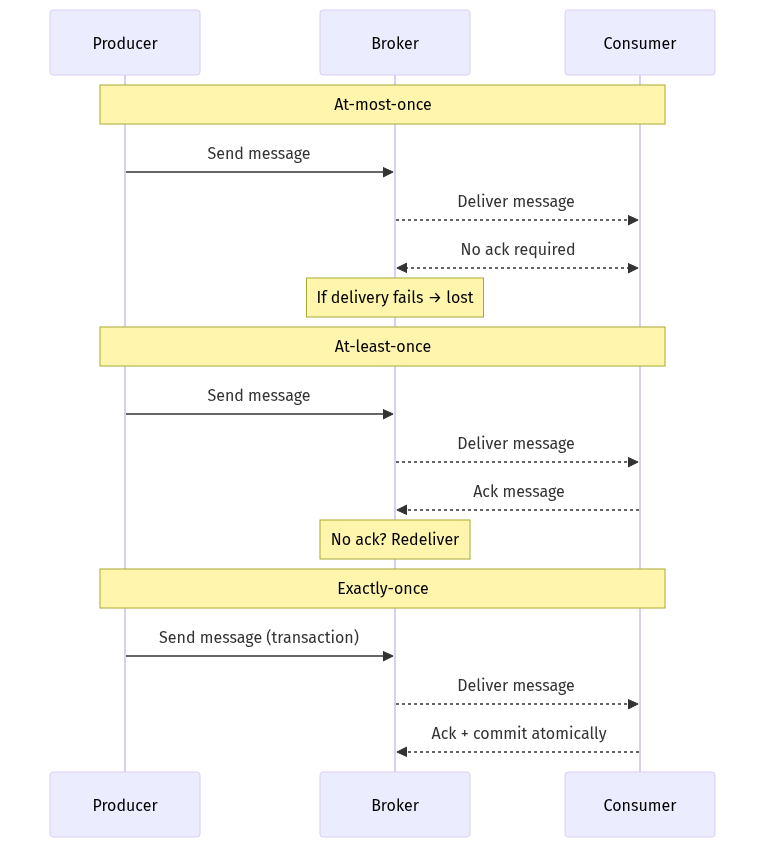

Lowest latency — no ack/nack overhead.

Simplest implementation.

Data loss possible under failures.

Not suitable for critical workflows.

Non-critical telemetry where occasional loss is acceptable (e.g., live UI metrics).

High-frequency, low-value sensor data.

No message loss under normal broker persistence guarantees.

The default for most brokers (RabbitMQ, SQS, NATS JetStream).

Requires idempotent consumers — they must handle duplicates gracefully.

Potential extra load from duplicate processing.

Payment processing (with idempotency keys).

Order event processing.

Logging pipelines.

Simplest for consumers — no deduplication logic.

High complexity, often broker-specific.

Lower throughput due to transactional overhead.

Often misunderstood — "exactly-once" guarantees are fragile in distributed systems.

Financial transaction settlement (Kafka + idempotent producers + transactions).

Highly sensitive event processing.

At-least-once is the most common.

You can achieve effectively-once delivery by combining at-least-once brokers with idempotent consumer logic.

Broker adapters may expose native exactly-once features (e.g., Kafka transactions) via createOptions or broker-specific APIs.

Acknowledgements — explicit ack()/nack() calls.

Retries — redelivery on failure.

Consumer groups — work sharing without loss.

Dead-letter queues (DLQ) — holding unprocessable messages for inspection.

Set sensible retry limits — infinite retries can overload systems.

Use DLQs to capture poison messages (malformed or consistently failing).

Monitor consumer lag — large lag indicates bottlenecks.

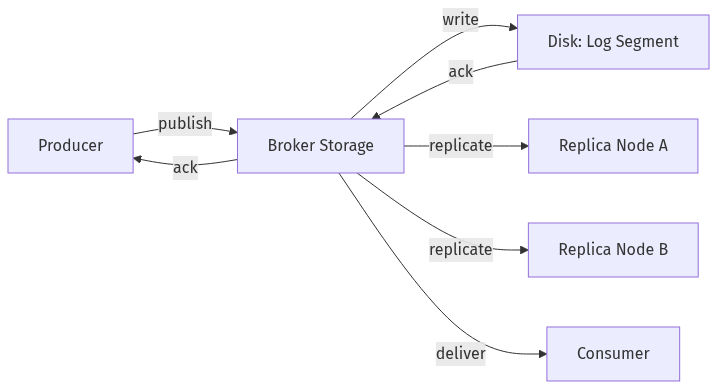

Disk persistence — messages are written to disk (RabbitMQ durable queues, Kafka logs).

Replication — messages are stored on multiple nodes (Kafka ISR, Pulsar BookKeeper).

Acknowledgement after fsync — broker only acks after writing to stable storage.

Durability often increases latency.

Replication adds network cost but prevents data loss from node failure.

RabbitMQ Adapter — durable queues + persistent messages.

Kafka Adapter — log-based storage with configurable replication factor.

NATS JetStream Adapter — file or memory storage with optional replication.

ZeroMQ Adapter — no built-in durability (application must handle persistence).

Work-sharing: Each message is processed by exactly one consumer in the group.

Isolation between groups: Multiple groups can subscribe to the same topic, each getting its own full copy of the messages.

Scaling: Adding more consumers to a group increases parallelism; removing consumers reduces throughput but not reliability.

If a consumer in a group fails mid-processing: The broker reassigns its unacknowledged messages to other consumers in the same group.

If more consumers join the group: The broker redistributes partitions or message streams to balance the load.

Monitor consumer lag per group.

Keep consumer processing times balanced — slow consumers can cause uneven workloads.

In idempotent systems, you can temporarily run the same consumer logic in multiple groups for migration or testing.

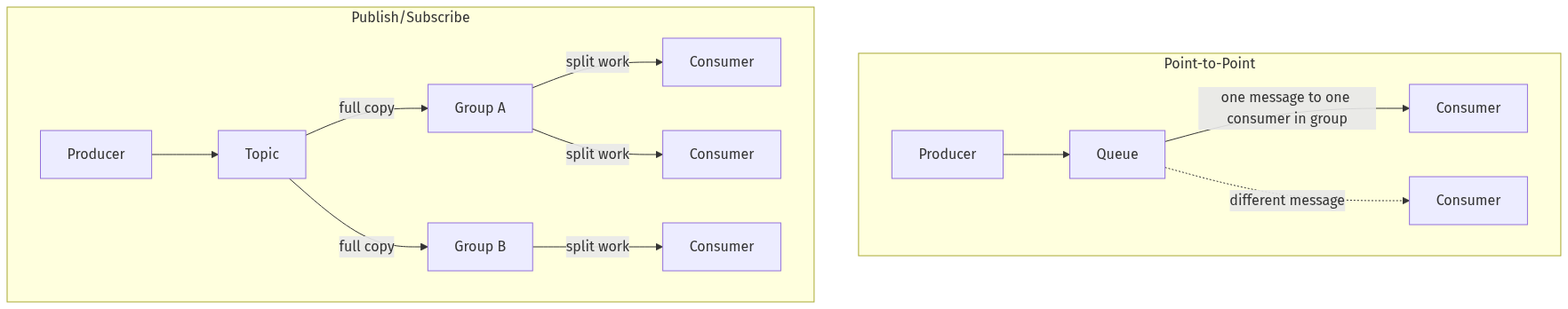

A message is sent to a queue.

Exactly one consumer within the target group processes it.

Once acknowledged, the message is removed.

Ensures work is processed only once per group.

Easy to reason about load balancing.

No automatic duplication to other consumers outside the group.

Task queues (image processing jobs).

Distributed workers for batch workloads.

Producers send to a topic.

Each subscribed group gets a full copy of each message.

Inside each group, messages are load-balanced.

Multiple services can independently react to the same event stream.

Decouples event producers from consumers.

More storage and network usage if many groups subscribe.

Need to manage schema and compatibility carefully.

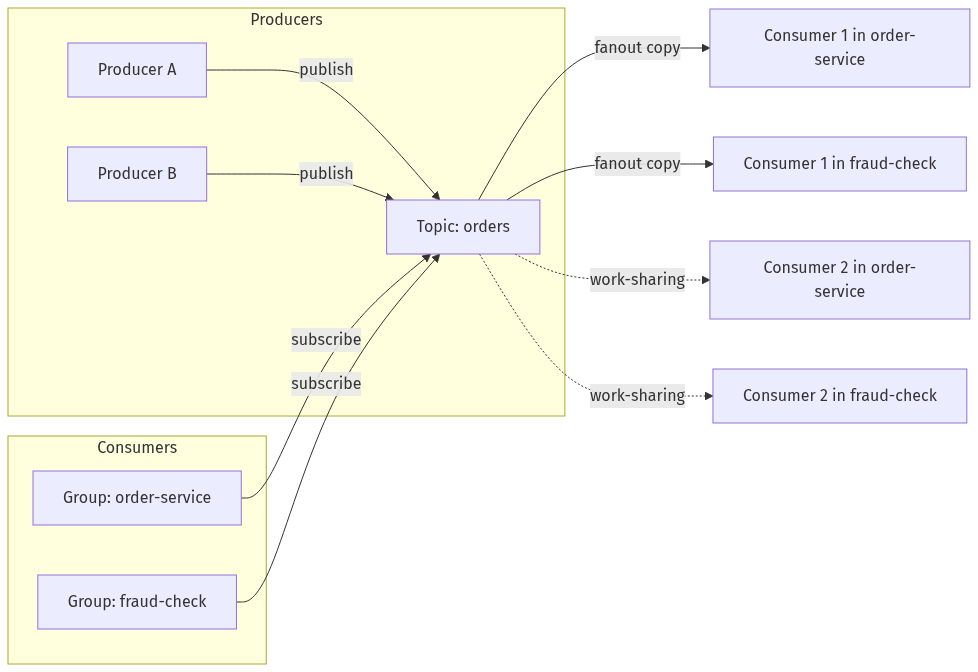

publish(topic, message, opts?) — send to a topic.

subscribe(topic, handler, groupId, opts) — join a group to consume messages.

Point-to-point — by having only one group for a topic.

Fanout — by having multiple groups subscribed to the same topic.

topic: Name of the topic (string).

Naming is case-sensitive for most brokers.

msg: Message to send, without the ack and nack methods.

Must include id, body, and headers.

opts: Optional SendOptions:

prio: Message priority (broker-dependent).

ensure: Create the topic/queue/stream if it doesn’t exist.

createOptions: Broker-specific creation parameters (durability, partitions, etc.).

topic: Name of the topic (string).

handler: Async function that processes each message.

Receives a BrokerMessage with ack() and nack() methods.

Must call ack() on success, or nack(requeue?: boolean) on failure.

groupId: Mandatory group identifier for work-sharing.

opts: Optional ConsumeOptions (inherits all SendOptions).

Always call ack() exactly once for successfully processed messages.

Call nack(true) for transient errors (e.g., network failures to downstream systems).

Call nack(false) for permanent errors (e.g., invalid schema) to avoid poison-message loops.

Store id and relevant headers for idempotent processing in at-least-once systems.

Prevents accidental global broadcast to all consumers.

Makes intent explicit in code: you either want fanout (multiple groups) or point-to-point (single group).

Aligns OmniQueue’s semantics with modern brokers like Kafka, NATS JetStream, and Pulsar, where groups (or their equivalents) are first-class.

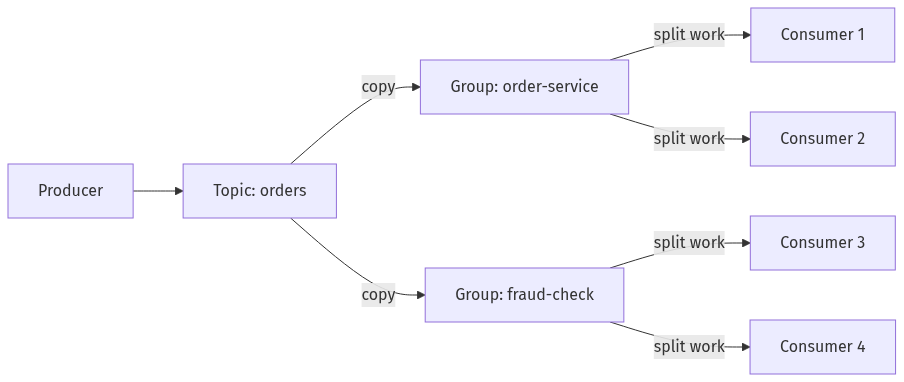

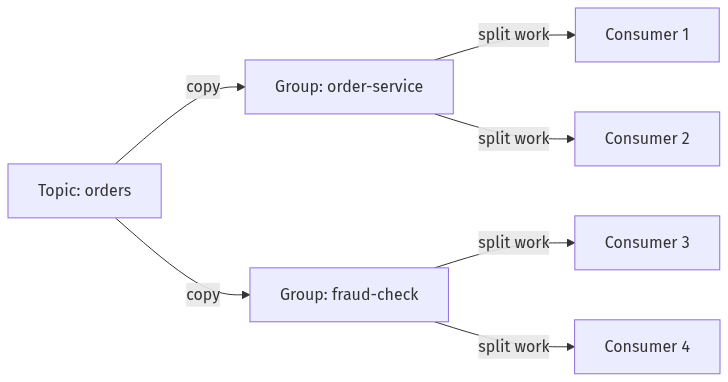

Each group subscribed to that topic receives a full copy of the message stream.

Within each group, only one consumer handles a given message.

The broker decides which consumer in the group gets the next message, based on its load-balancing strategy.

Point-to-point load sharing: Use a single group for all consumers that should share the workload.

Fanout processing: Use multiple groups, each representing an independent processing path.

Scaling throughput: Add more consumers to the same group to process messages faster.

Zero-downtime deployment: Temporarily run old and new versions of a consumer in the same group to drain messages during rollout.

Isolated experiments: Spin up a separate group for A/B testing without impacting production consumers.

Back-pressure management: Monitor group-level consumer lag to detect bottlenecks.

Establishes network connections to the broker or peer nodes.

Performs authentication/authorization (if required).

Prepares client internals such as connection pools, channel/session objects, and background heartbeat tasks.

May lazily create broker-side resources (queues, topics, streams) depending on the adapter.

Ensures in-flight messages are acknowledged before disconnection.

Releases network sockets, file handles, and background workers.

Helps the broker redistribute work quickly to other consumers in the same group.

Node.js process hooks (SIGTERM, SIGINT).

HTTP server start/stop callbacks.

Framework lifecycle hooks (NestJS OnModuleInit / OnModuleDestroy).

Skipping close(): Can lead to stale connections or message redelivery delays.

Closing too early: If you close before acknowledging all messages, some brokers will redeliver them.

Multiple init() calls: Avoid re-initializing the same broker instance; instead, reuse the connection.

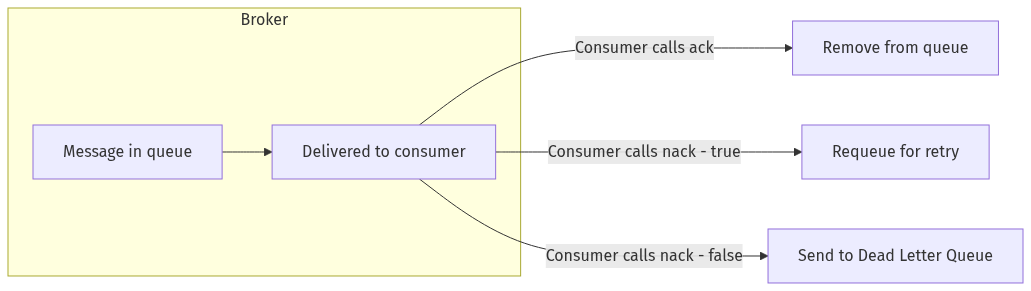

The message has been processed successfully.

It can be removed from the queue or marked as complete in the log.

The message could not be processed.

The broker may requeue the message for retry (if requeue is true) or discard/send to DLQ (if false).

nack(true) → retry later (transient failure).

nack(false) → drop or route to DLQ (poison message).

Ensure repeating the same message does not cause incorrect results.

Common strategies:

Use a message ID store (database, Redis) to track processed IDs.

Apply upserts instead of inserts.

Wrap business logic in transactional boundaries.

Debugging message payloads.

Backfilling after code fixes.

Alerting when thresholds are reached.

RabbitMQ → channel.ack() / channel.nack()

Kafka → commit offset / seek & reprocess

NATS JetStream → msg.ack() / msg.nak({ delay })

ZeroMQ → application-level ack handling

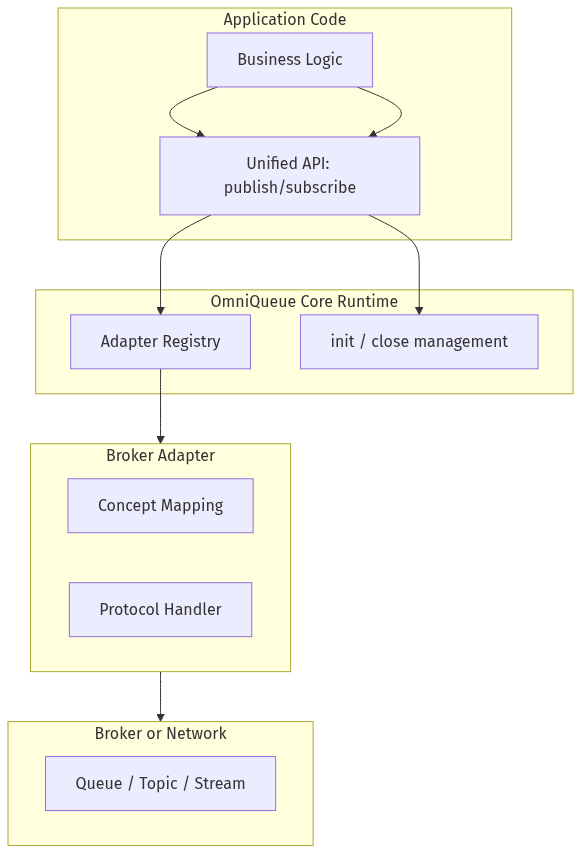

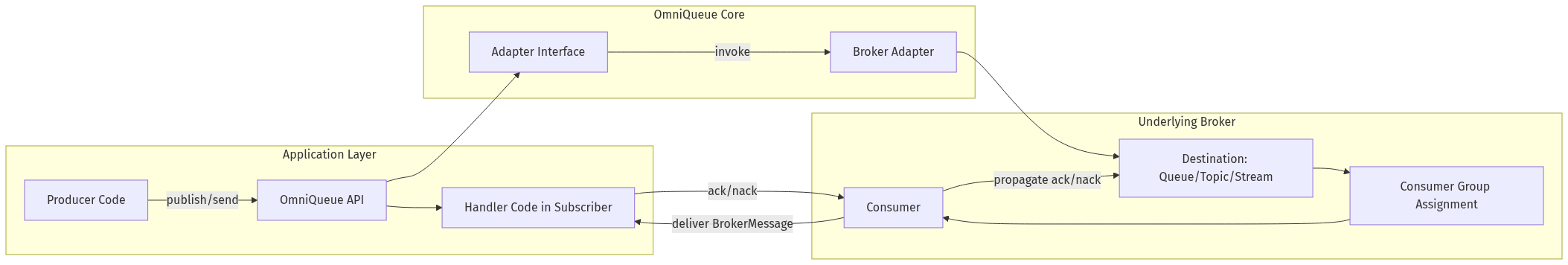

Application Layer — Your service’s producer and consumer code.

OmniQueue Core — The broker-agnostic interface (publish, subscribe) and internal adapter interface.

Broker Adapter — Provider-specific implementation (RabbitMQ, Kafka, NATS, etc.).

Broker — The actual messaging infrastructure.

Destination — The queue, topic, or stream created or ensured.

Consumer Group Assignment — The broker’s work-sharing or partition assignment process.

Backpressure Management — Most adapters expose prefetch or flow control to prevent overwhelming consumers.

Tracing — Add correlation IDs in headers for distributed tracing.

Error Containment — Use dead-letter queues to capture repeatedly failed messages.
